Mahindra engineers the official tractor of tough. Now, they’ve used the same engineering and materials to build the world’s toughest side-by-side. At 3/4-ton industry-leading payload, no other UTV can endure the abuse or environments we put the ROXOR’s heavy-gauge steel frame and body through. And when you factor in a 55-hp Turbo Diesel engine, you have a vehicle that can go anywhere.

TURBO DIESEL 2.7L ENGINE
TORQUE: 144 LB-FT
TOWING CAPACITY: 3500 LB

DIMENSIONS & CAPABILITIES

WHEELBASE 96” / 244 cm
BASE CURB WEIGHT ¹ 3075 lb / 1395 kg
LENGTH 144” / 366 cm
WIDTH 60.7″ / 154 cm
HEIGHT 75”/ 191 cm
GROUND CLEARANCE 9” / 22.86 cm
FUEL CAPACITY 16 gal / 60.5 L
PAYLOAD CAPACITY² 1525 lb / 692 kg
GVWR 4600 lb / 2087 kg
TOWING CAPACITY 3500 lb / 1588 kg @ 15 mph
SEATING CAPACITY 2

ENGINE

TYPE Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
CYLINDERS 4
DISPLACEMENT 2730cc (2.7L / 165 in³)
BORE & STROKE 88.9 X 110.0 mm
ENGINE 55 hp @ 2300 rpm (Max 2700 rpm)
TORQUE 144 ft-lb @ 1400 rpm
COMPRESSION RATIO 18.7 : 1
COOLING SYSTEM Liquid
FUEL SYSTEM Mahindra Common Rail Diesel (mCRD)

DRIVETRAIN

TRANSMISSION 5-speed manual
TRANSFER CASE 2-speed manual with 2.41:1
DRIVELINE 2WD / 4WD
FRONT AXLE Full Floating w/5.38 : 1 Gear Ratio
REAR AXLE Semi Floating w/5.38 : 1 Gear Ratio

CHASSIS & SUSPENSION

CHASSIS TYPE Boxed Steel Frame
FRONT SUSPENSION HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
REAR SUSPENSION HD Leaf Spring w/ Shock Absorbers
SHOCK ABSORBERS Double Acting Hydraulic
TIRES 235 / 70R16; All-Terrain
WHEELS 16 X 7″ Painted Steel

SAFETY

PROTECTION Roll-Over Protection System (ROPS)
SEAT BELTS (2) 3-point
BRAKES Hydraulic Power
PARKING BRAKE Mechanical
FRONT BRAKE 11” Disc / 27.94 cm
REAR BRAKE 11” Drum / 27.94 cm

PERFORMANCE

MAX SPEED 52 mph / 84 kmph
MAX TOWING SPEED 15 mph / 24 kmph
MAX FLAT TOWING SPEED³ 55 mph / 88 kmph

CONVENIENCES

STEERING Hydraulic Assist
STORAGE (2) lockable underseat boxes
INTERIOR FLOOR ROXLINER™
CARGO BED ROXLINER™
CARGO AREA TIE DOWNS 8 Side Rail, 2 Floor
BUMPER Painted Steel

ELECTRICAL

BATTERY 12V AGM
ALTERNATOR 90A
POWER OUTLET 12-volt
INSTRUMENTATION Digital Cluster
HEADLIGHTS Halogen
TAILLIGHTS Low-Profile LED

OTHER INFO

FINAL ASSEMBLY USA
WARRANTY 2-Year Limited Warranty

FOOT NOTES

Base curb weight as configured from factory with diesel fuel and fluids. No dealer accessories included.
Varies based on accessories and configuration.
Flat towing only with aftermarket locking hub kit.
See Operator’s Guide for complete details.

Black Friday Sale

Mahindra Roxor - HD Base model

Black Beard Arc Lighter

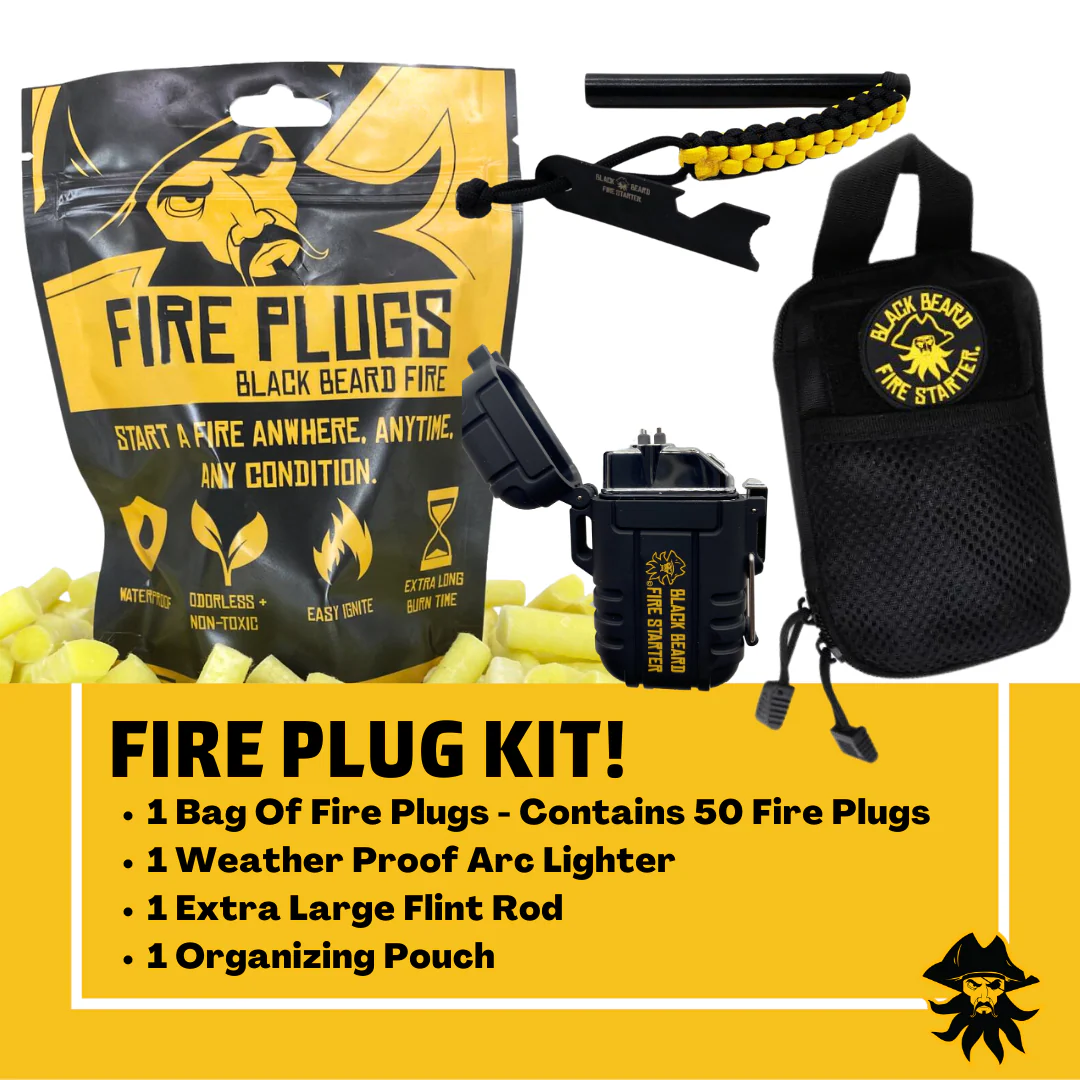

Black Beard Fire Plug Kit

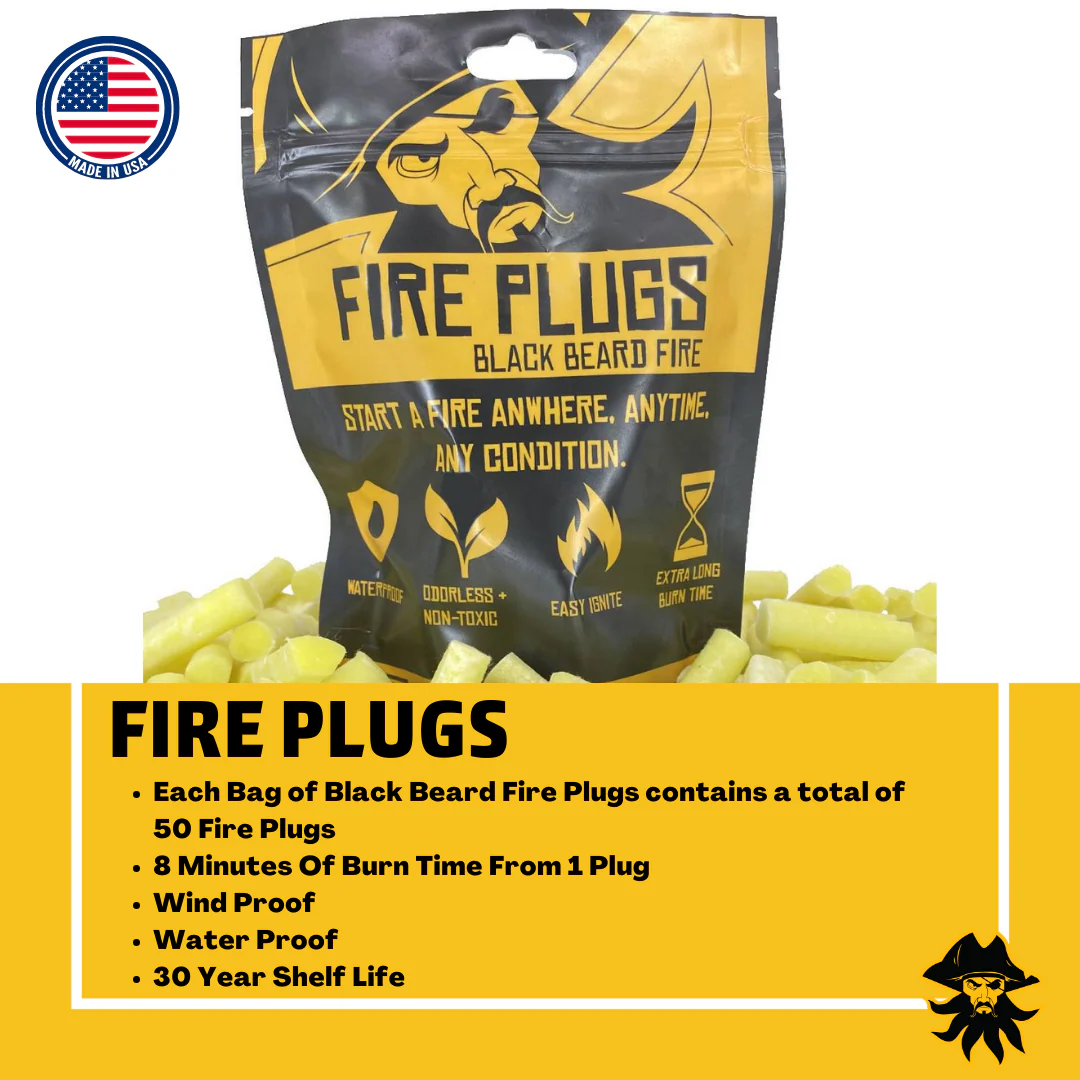

Fire Plugs

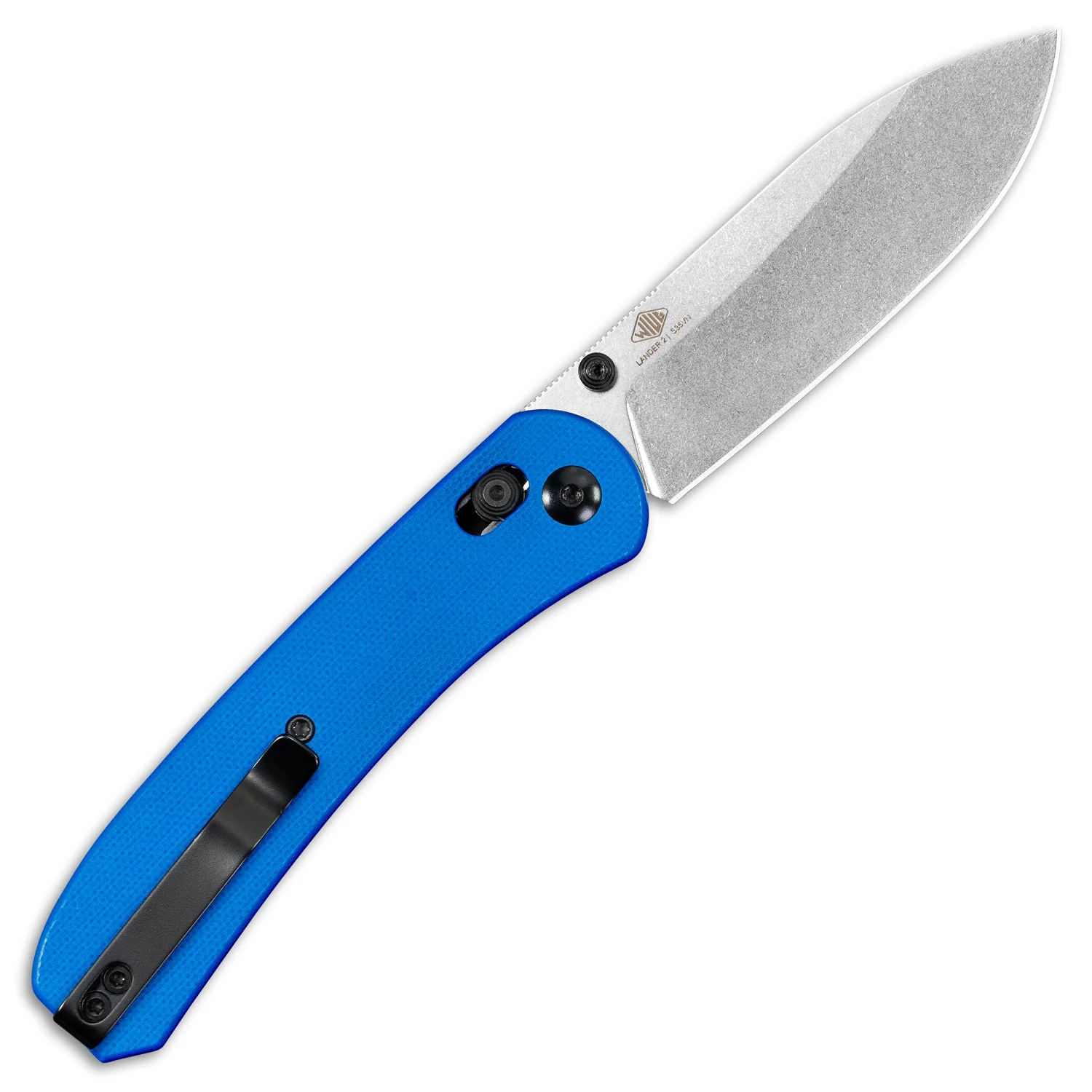

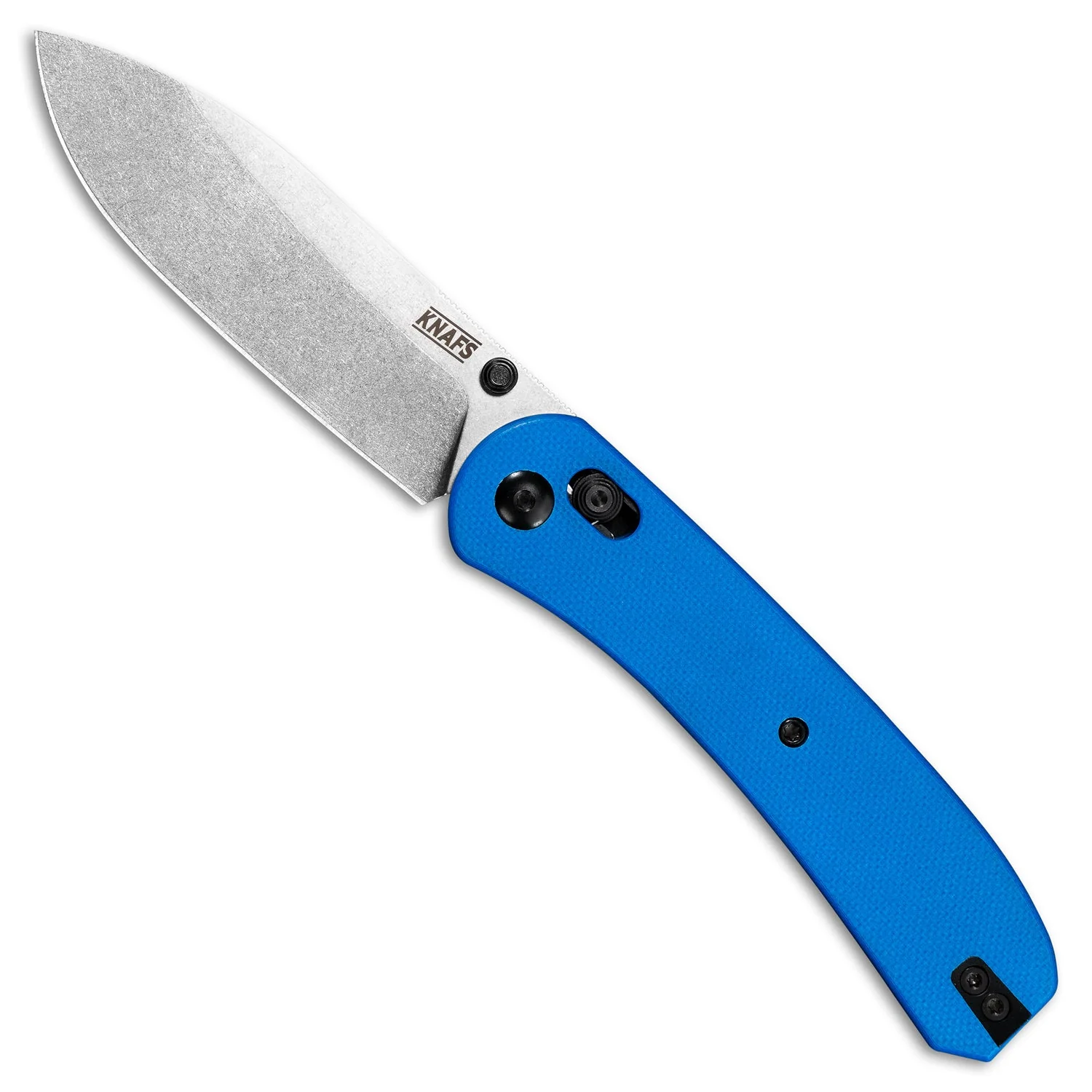

Lander 2 Pocket Knife - Blue G10 - Clutch Lock

Lander 2 Pocket Knife Rebuild Kit - Black

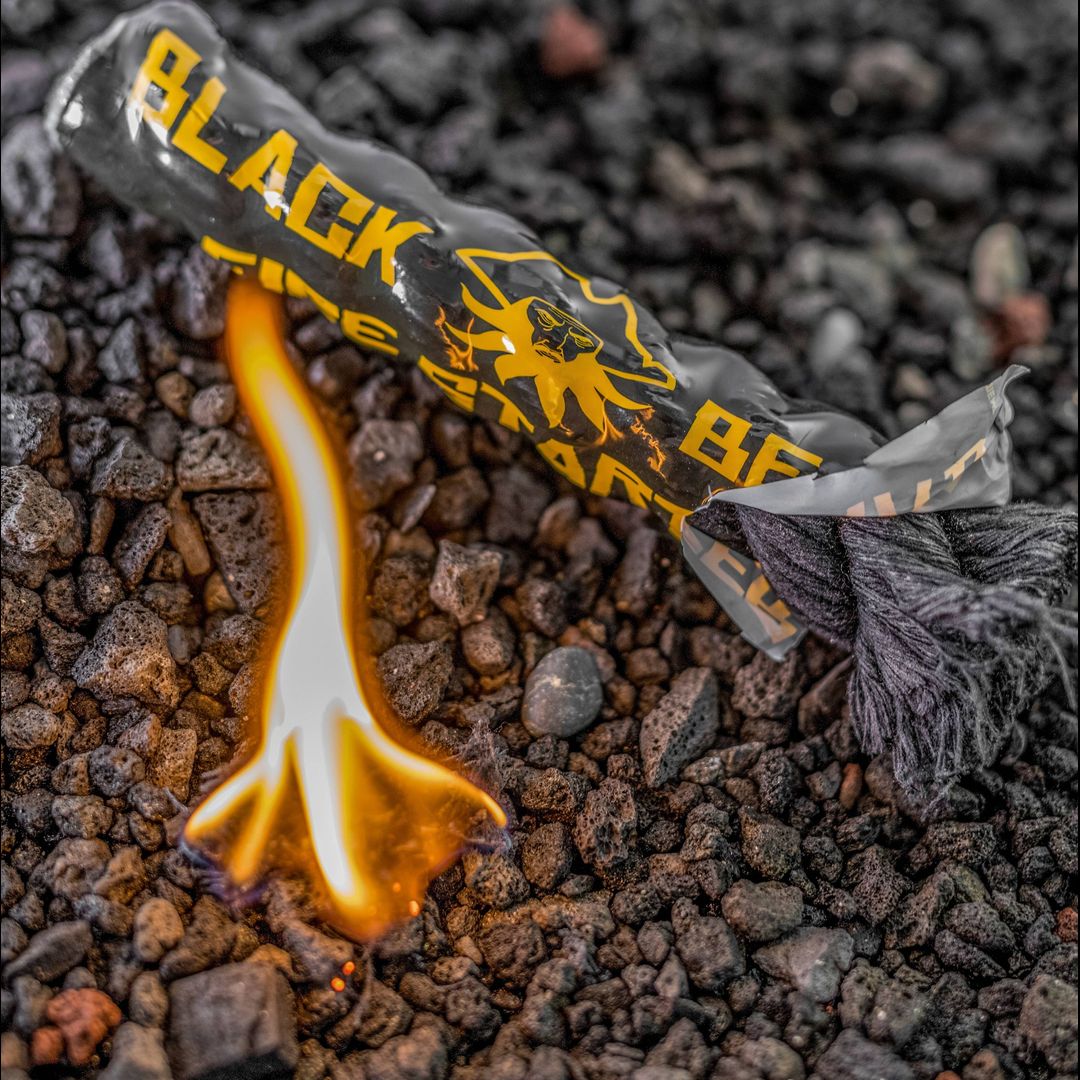

Black Beard Fire Starter

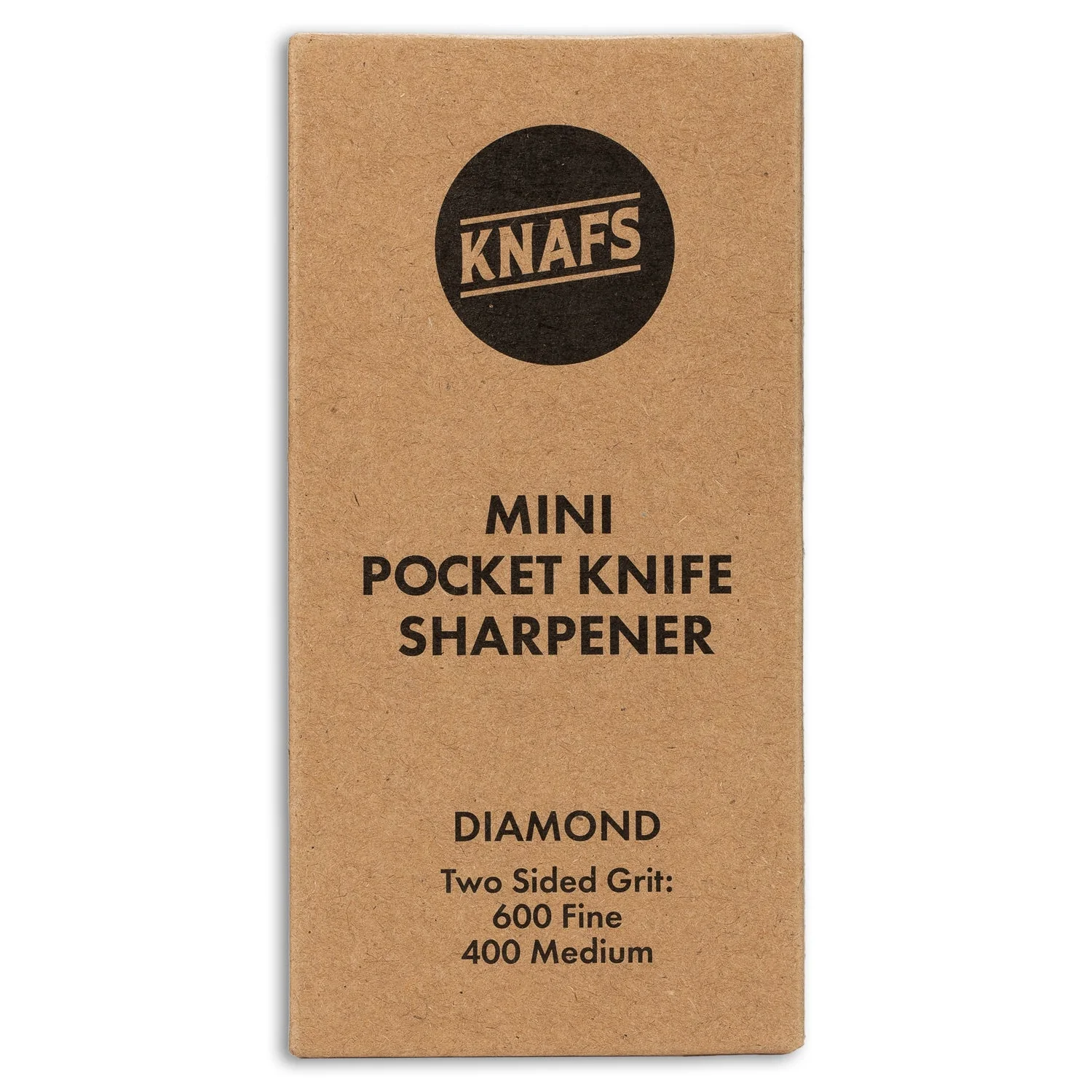

Mini Pocket Knife Sharpener - Diamond Stone

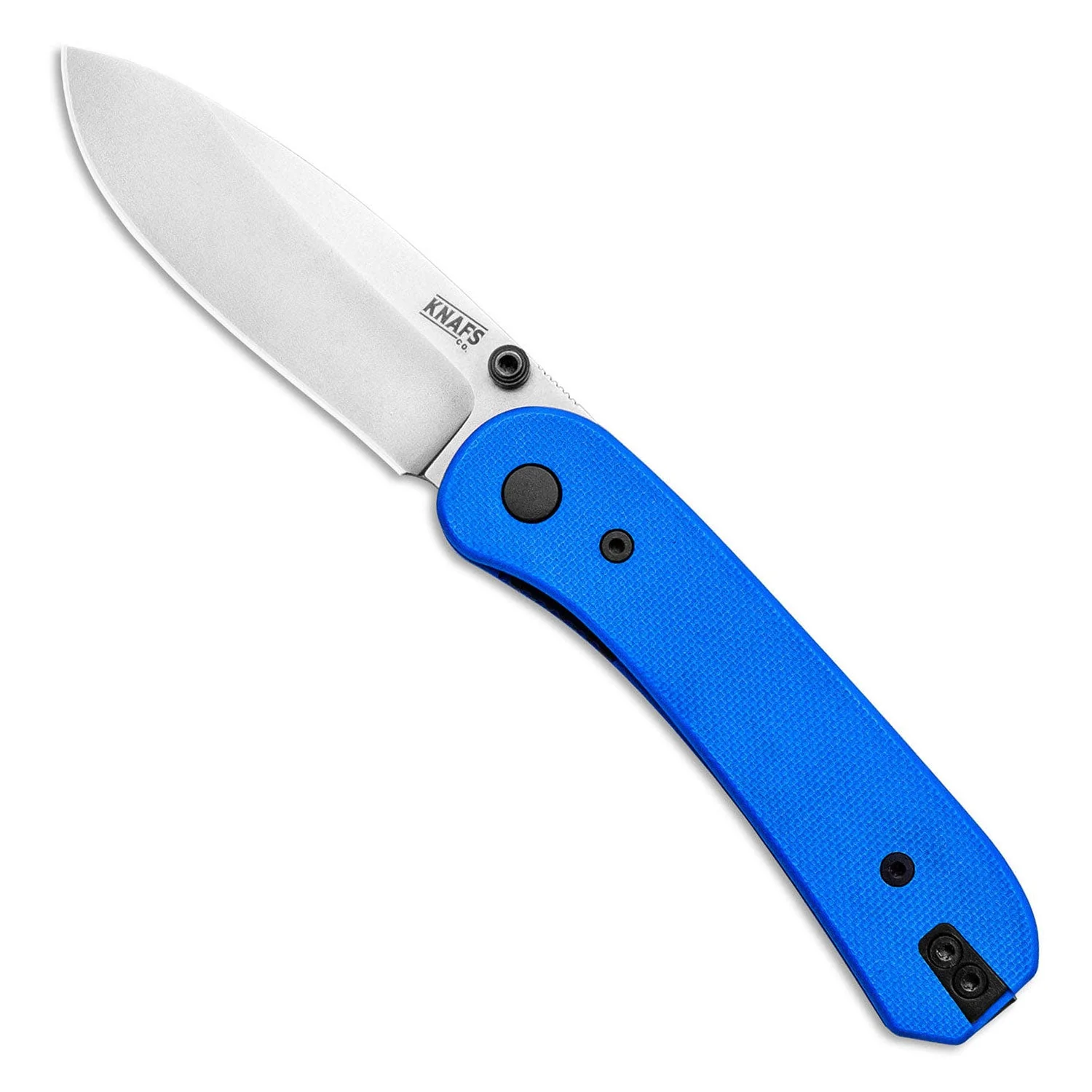

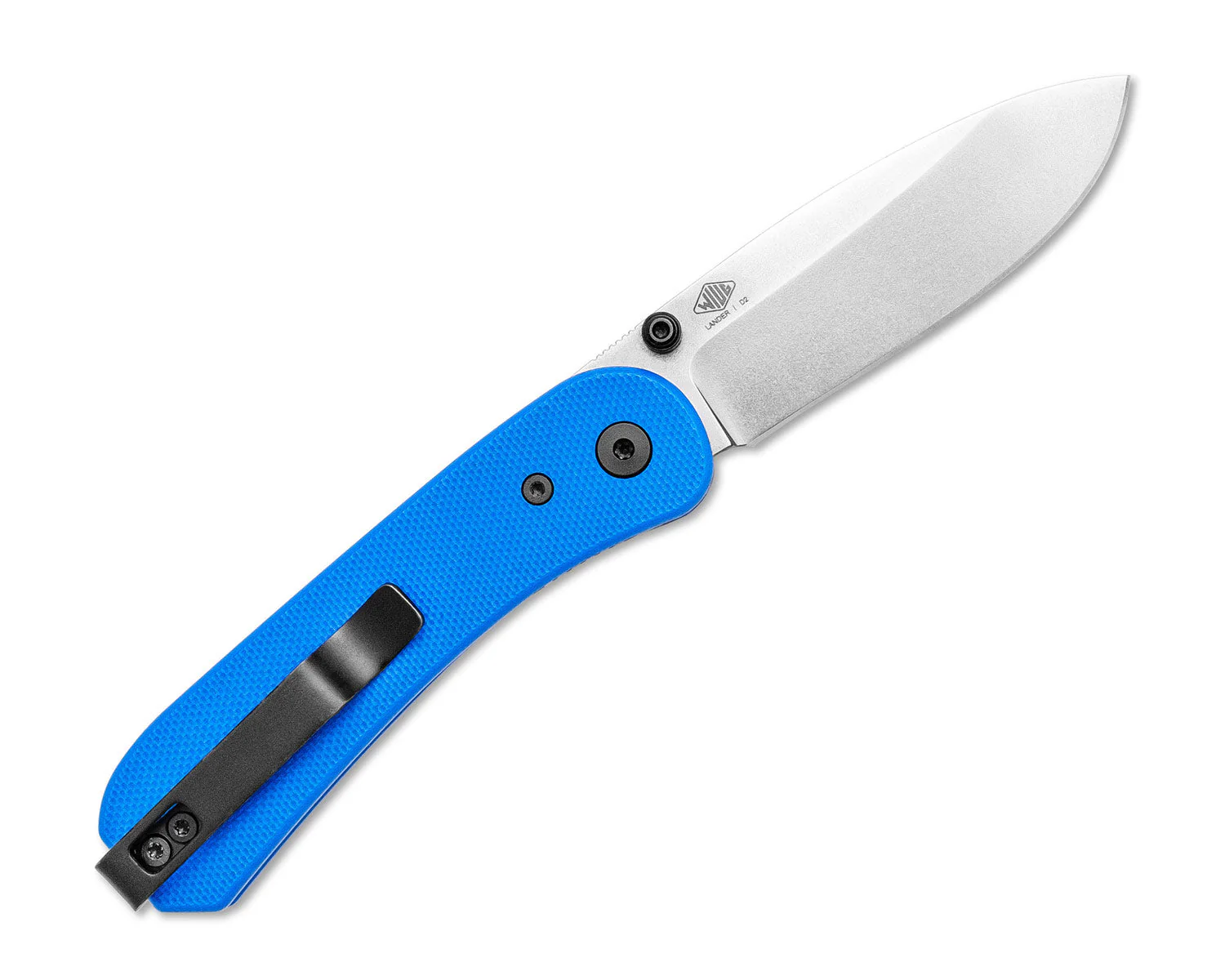

Lander 1 Pocket Knife - Blue G10 - D2

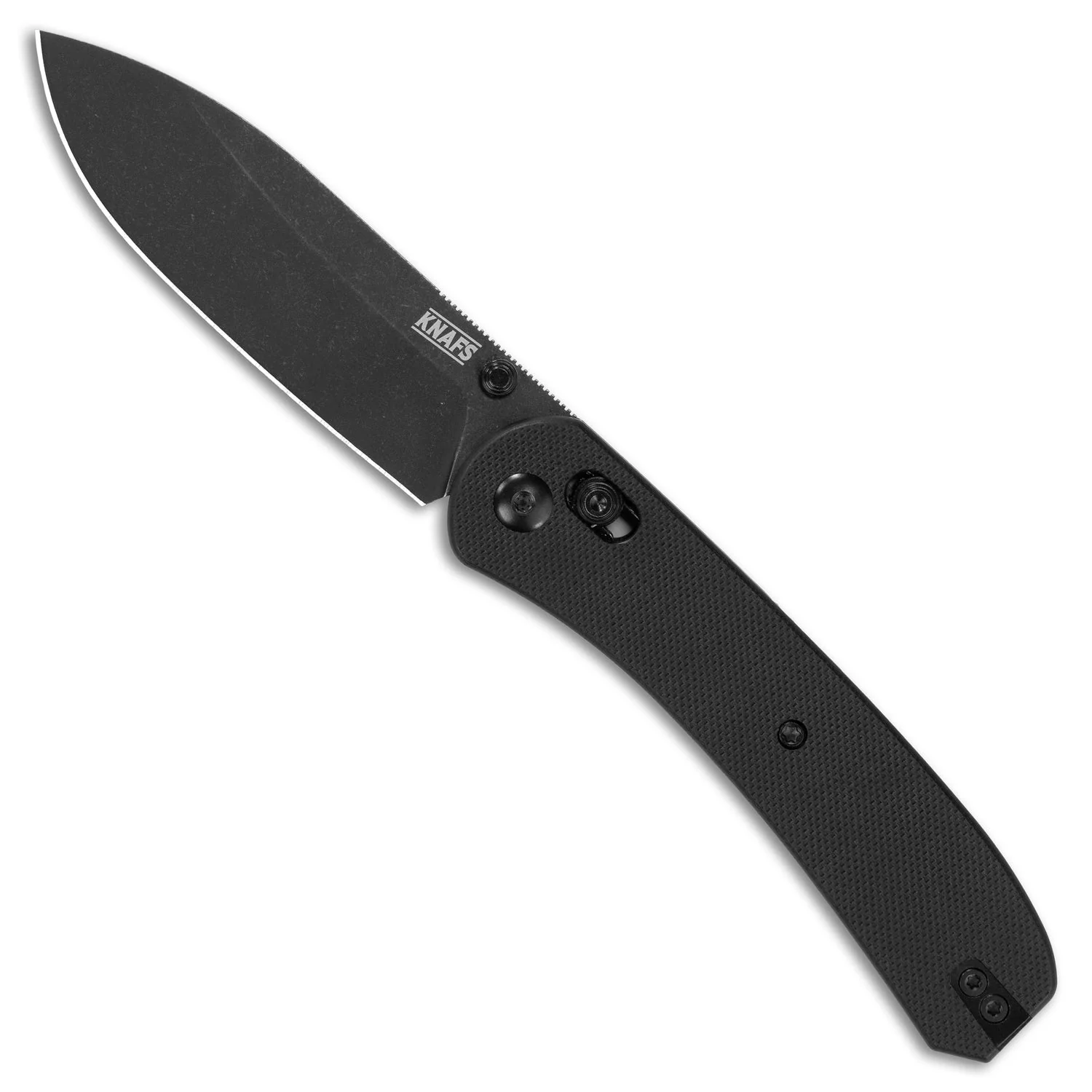

Lander 2 Pocket Knife - Black G10 - Clutch Lock

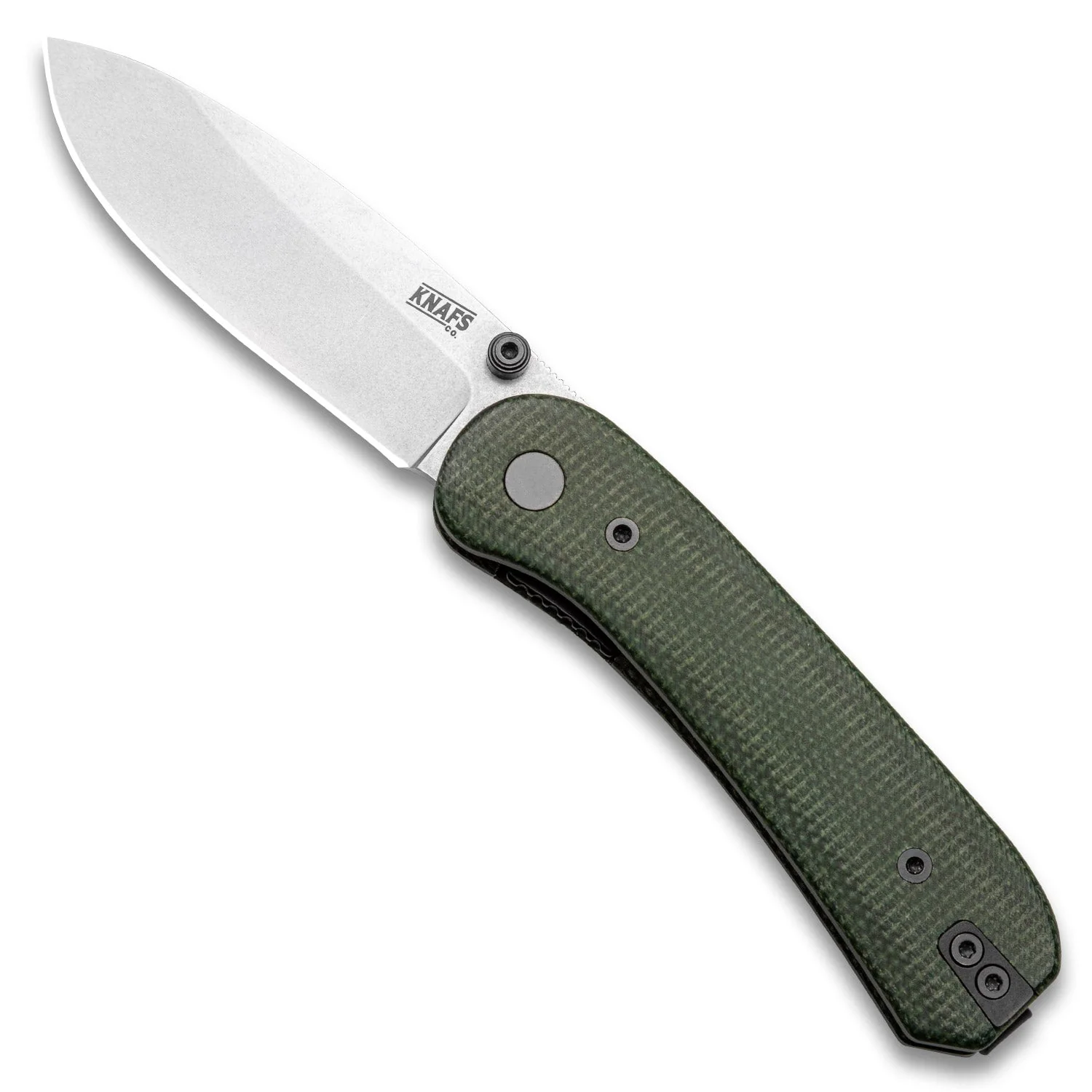

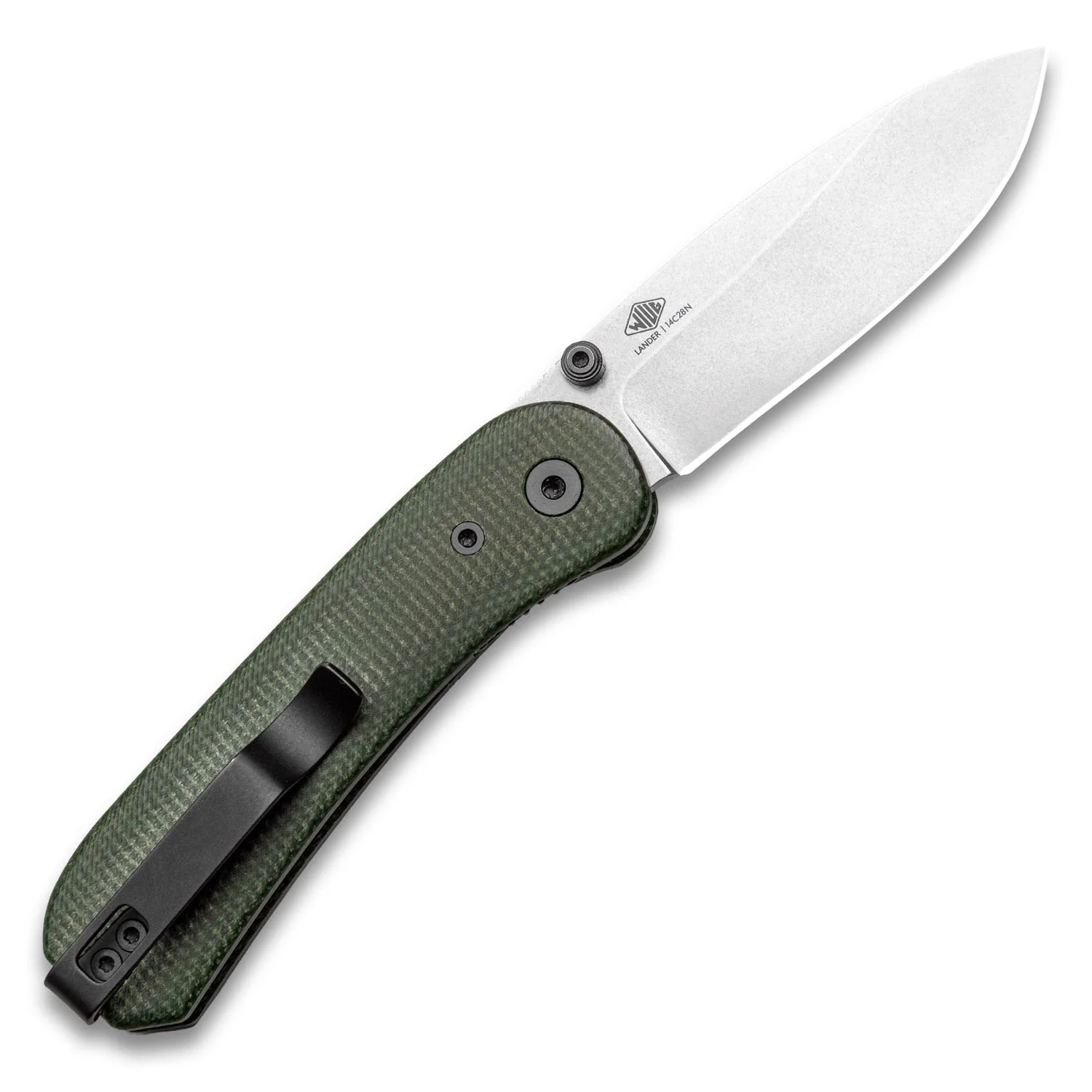

Lander 1 Pocket Knife - Contoured Green Micarta - 14C28N
